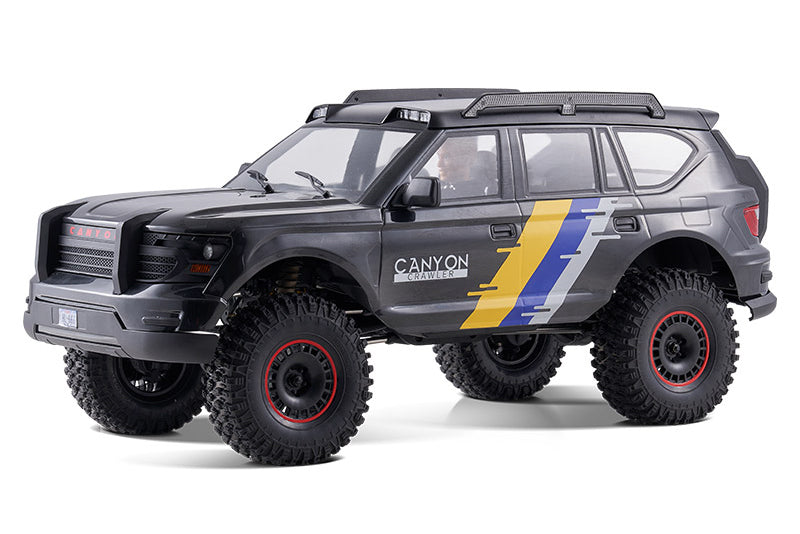

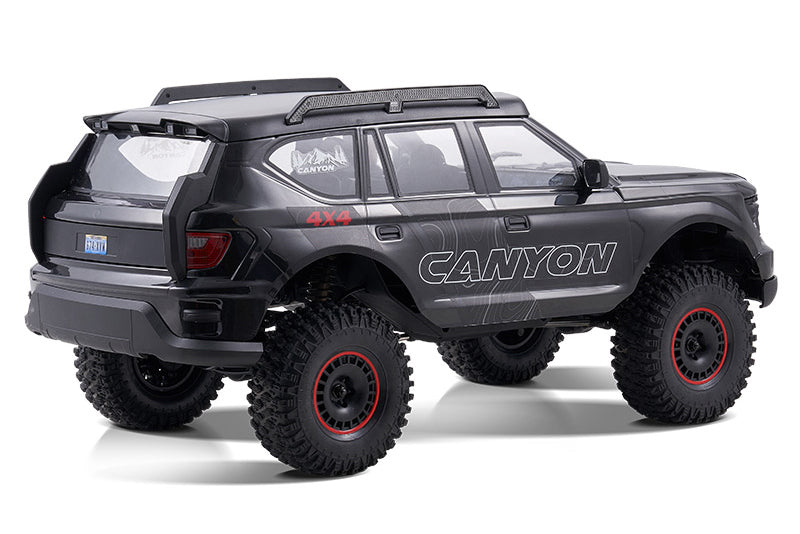

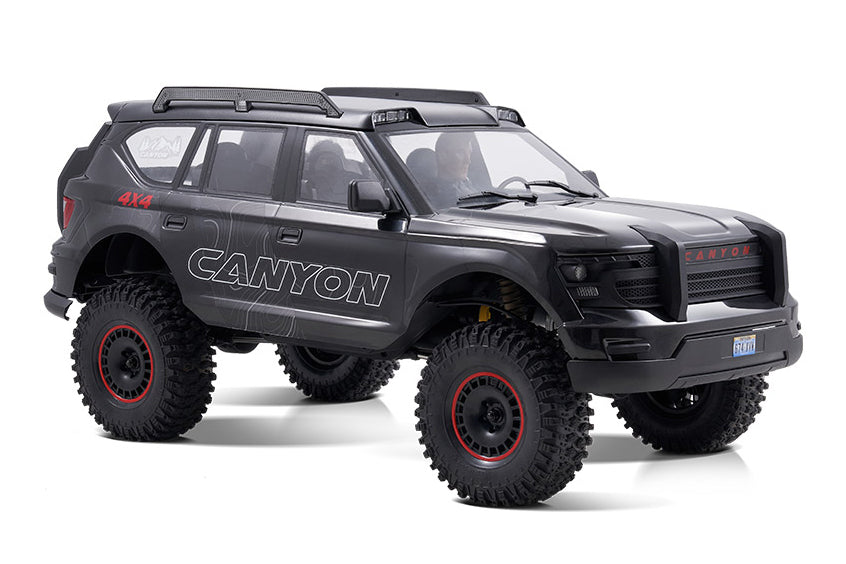

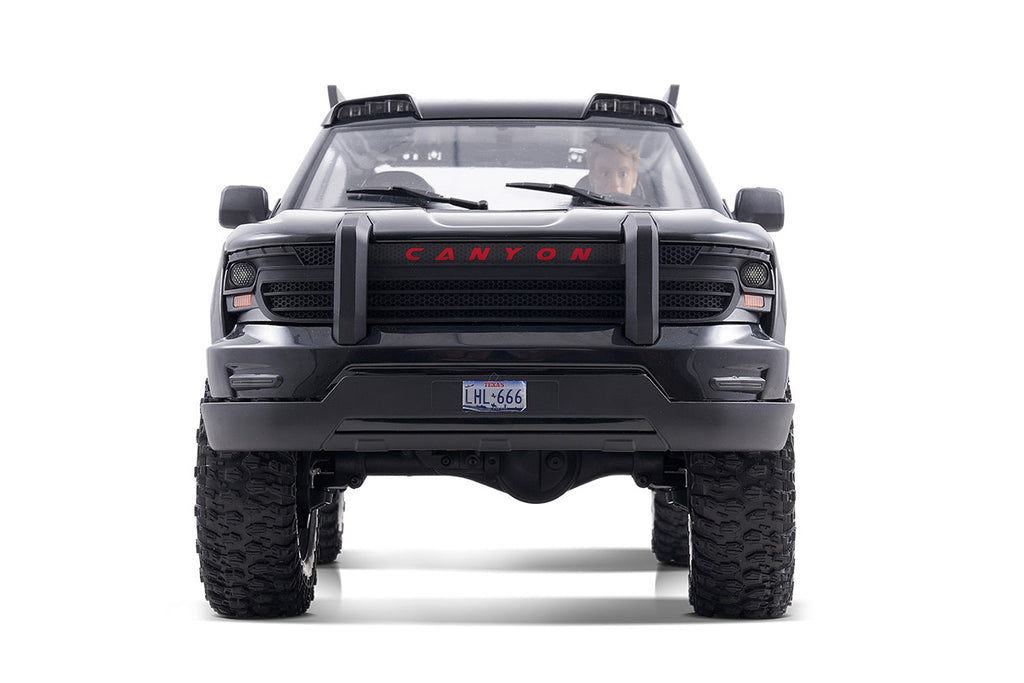

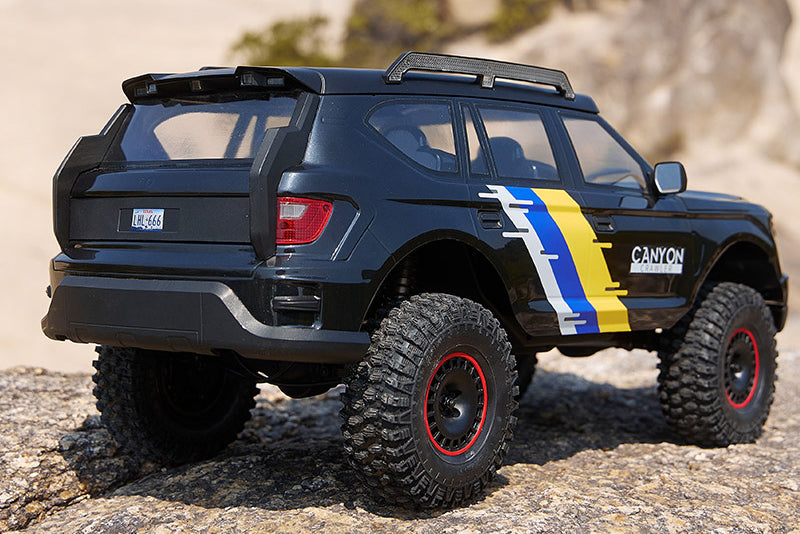

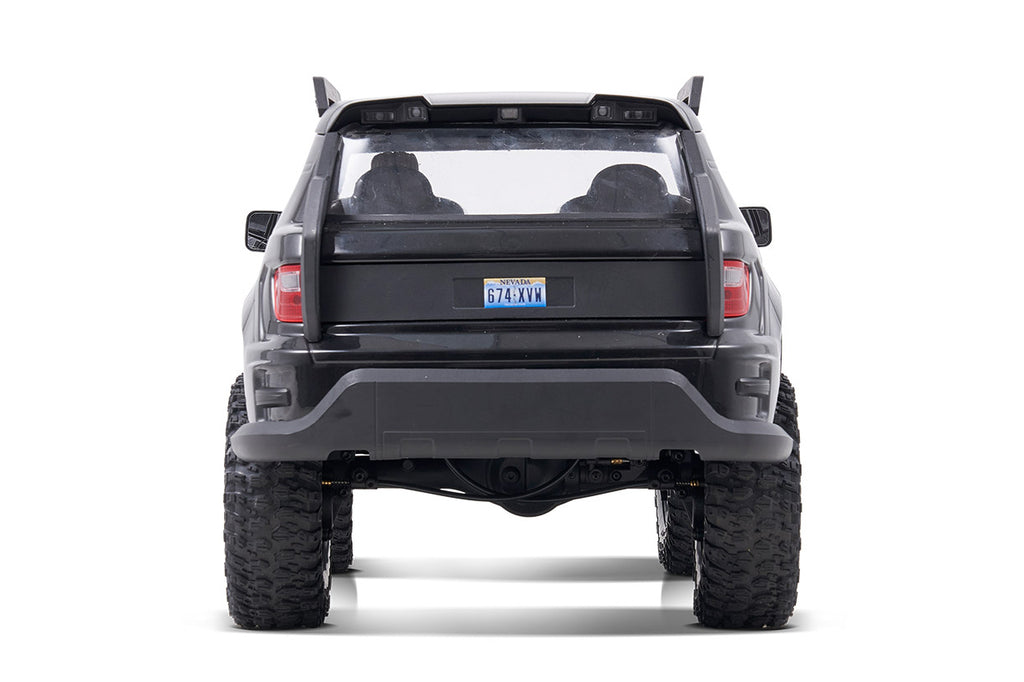

FMS 1/10 Canyon RS

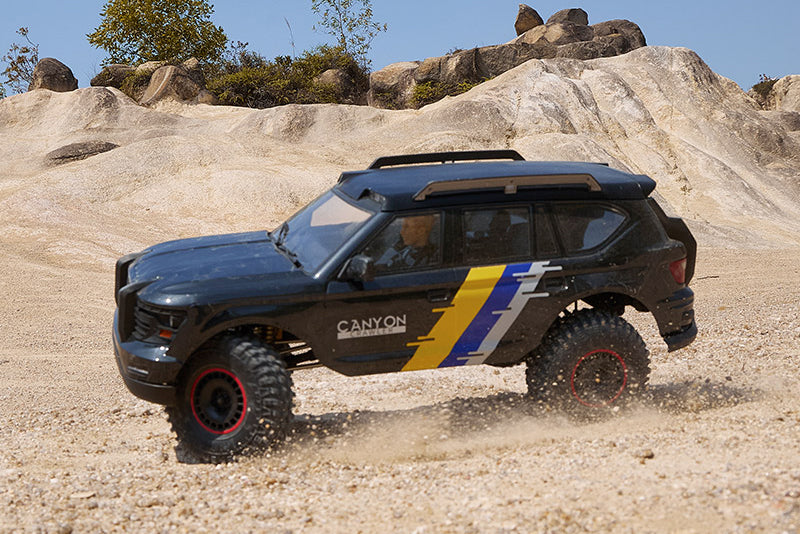

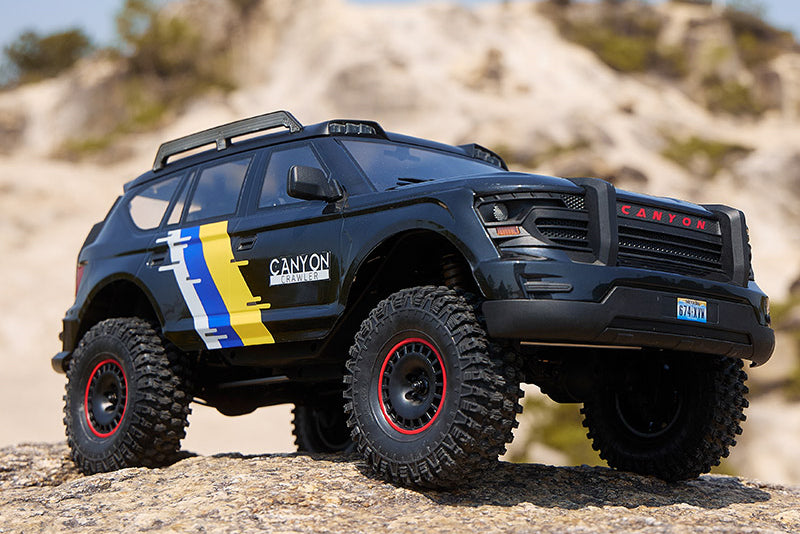

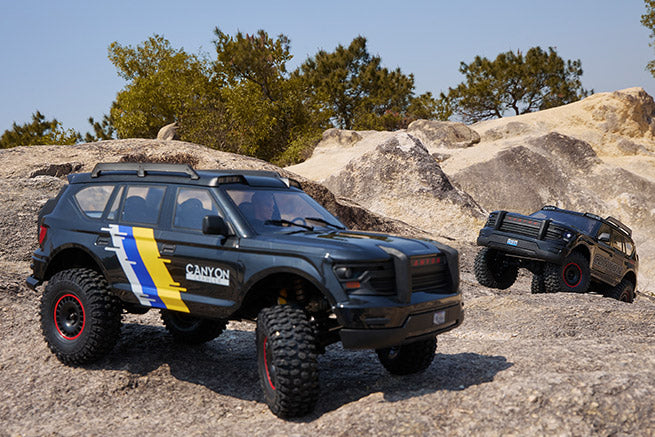

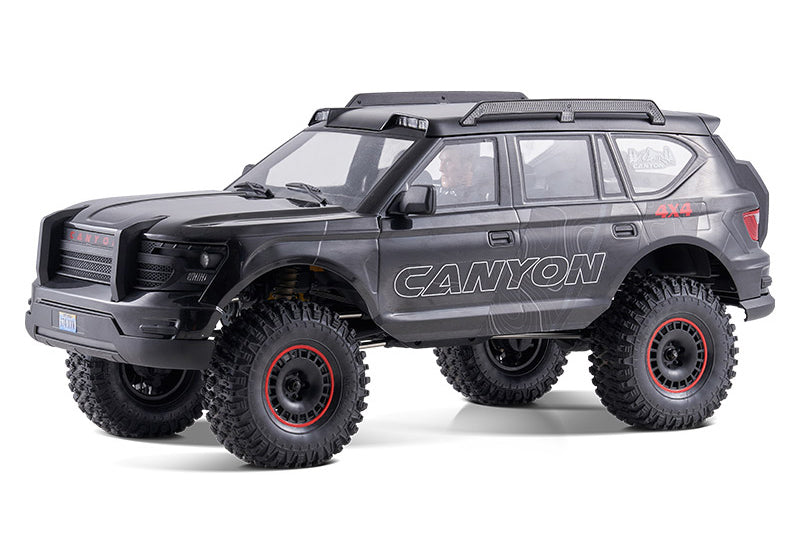

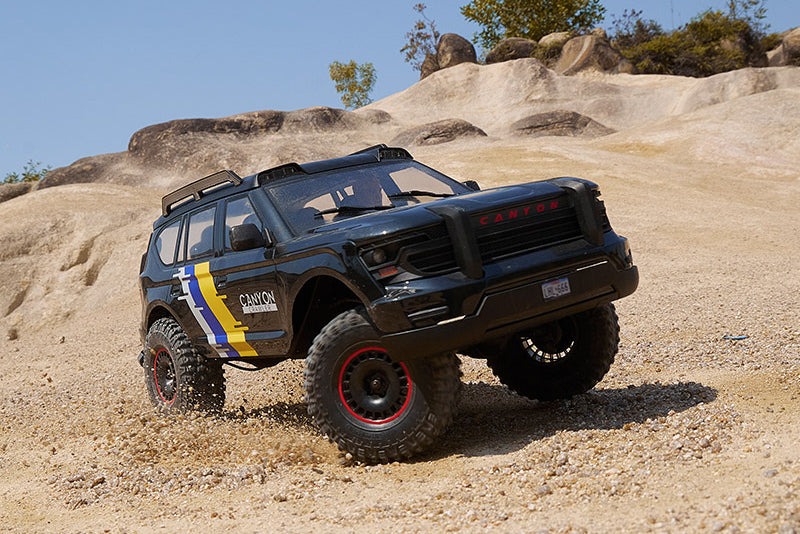

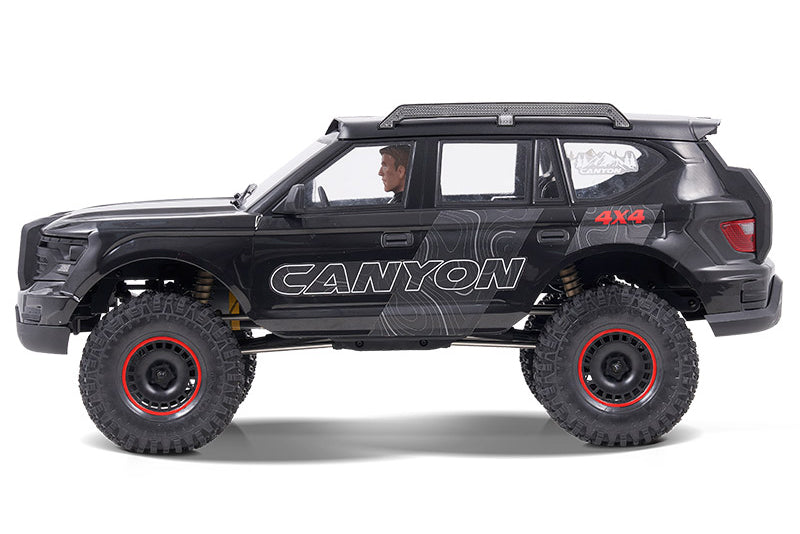

The FMS CANYON is a rugged off-road machine inspired by Dubai’s futuristic police supercar. Designed for realism and built for performance, it features a high-strength PC body shell with durable nylon roof panels, bumpers, mirrors, and door handles. Clear windows reveal a detailed driver figure and fully replicated cockpit interior. A synchronized LED lighting system includes functional headlights, turn signals, and tail lights with customizable light buckets for scale accuracy. The body attaches using FMS’s patented magnetic quick-mount system, which automatically connects power and lighting functions for easy setup. Underneath, the reinforced nylon chassis offers outstanding rigidity and impact resistance. Power comes from a two-speed transmission with reverse, metal gears and bearings, and portal axles that deliver maximum ground clearance. Finishing touches include servo-saver protection, rear brake discs and functional DIG mode for ultra-tight, tank-style turns.
Key Features
LCG Chassis Design
The low-center-of-gravity chassis keeps the truck planted and stable, even when tackling steep climbs or side-hill obstacles. This design improves handling on technical terrain and gives drivers the confidence to push harder without the risk of rolling over.
Tank Turn Capability
Activate the tank turn for an ultra-tight turning radius. The CANYON pivots around rocks, trees, and tight gates with precision—making it more agile, fun, and capable in any environment.
Selectable Front & Rear Diff Locks
Lock or unlock the differentials on demand directly from your transmitter. Keep them open for smooth cornering on trails, or lock them for maximum traction when rock crawling or climbing through tough terrain. Power is delivered exactly where it’s needed.
Servo Damper System
A unique servo damper absorbs harsh impacts from bumps and rocks, reducing stress on the steering servo. The result is smoother steering response, improved control on rough terrain, and extended servo life.
High-Traction Crawling Tires
Aggressive tread patterns and a soft rubber compound provide exceptional grip on rocks, dirt, sand, and loose terrain. These tires are engineered to maximize climbing performance while maintaining stability on uneven ground.
2-Speed Transmission
Shift on the fly between low and high gear. Use low gear for precise control and maximum torque while crawling, then switch to high gear for speed and trail running. One truck—two driving experiences.
Counter-Rotating Transmission
Counter-rotating driveshafts minimize torque twist, keeping the chassis stable under acceleration and maintaining control during technical climbs.
All-Metal Construction
Equipped with oil-filled metal shocks, steel gears, and a full set of ball bearings, this all-metal setup ensures exceptional durability, smooth suspension travel, and long-lasting performance across the most demanding terrain.

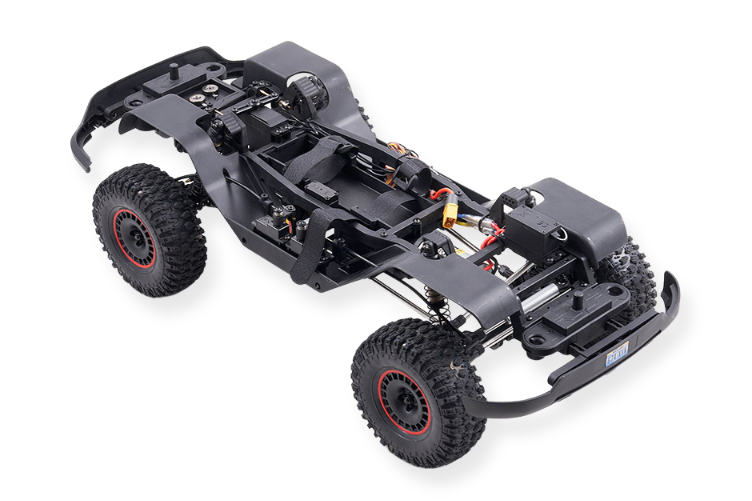

LCG chassis (new design)
Servo shock absorption protection device (new design)
Innovative DIG function with remote-controlled single rear wheel lock (patented)
Quick-release structure (patented)
Front and rear portal axles
High-traction crawling tires
Remote-controlled full LED light system
Realistic scale interior with fine details
Remote-controlled locking front and rear differentials
Two-speed transmission
Counter-rotating driveshafts
Oil-filled, all-metal shock set
Full-metal gears with plastic spur gear
Full set of ball bearings
Independent ESC
Includes two decal sets for user customization
Specifications:
● Transmitter: MG11
● Receiver: FS-R11P-BS
● Light Control: DB01
● Recommend Battery: 2-3S

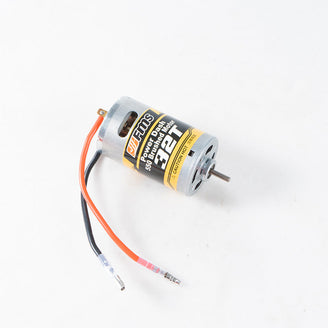

● Motor Type:550 Brushed Motor 32T
● Motor Gear Pinion:14T
● Motor Gear Pitch: M0.6
● Spur Gear Pinion: 33T
● Spur Gear Pitch: M0.6
● ESC: Hobbywing 1060
● Steering Servo: 25KG Steering Servo*1
● Shift/Differential Servo: High/low speed servo*1、Front/Rear Diff Servo*2、DIG servo*1

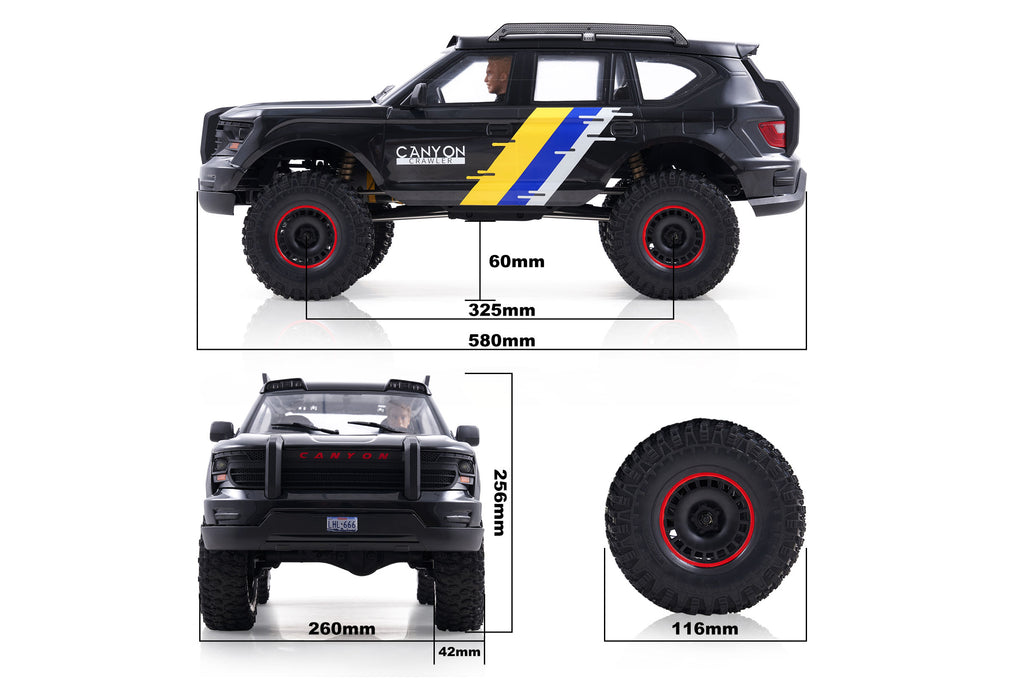

● Product Size: 580*260*256mm
● Wheelbase: 325m
● Tread: 208mm
● Approach Angle: 38°
● Departure Angle: 39.5°
● Breakover Angle: 45°
● Ground Clearance: 60mm
● Steering Type:2WS
● Maximum steering angle: 42°
● Maximum Climbing Angle: 40°
● Tire Size（Diameter & Width）: 116*42mm
● Wheelhub Size（Diameter & Width）: 56*32mm
● Wheelhub Adaptor Size : 12mm
● Bearing: 36pcs
● Drive System: 4WD
● Waterproof Class: Splash-proof
● Battery Compartment Size: 156*48mm
● Maximum Speed: 15KM/h
● Maximum Control Distance: 150m

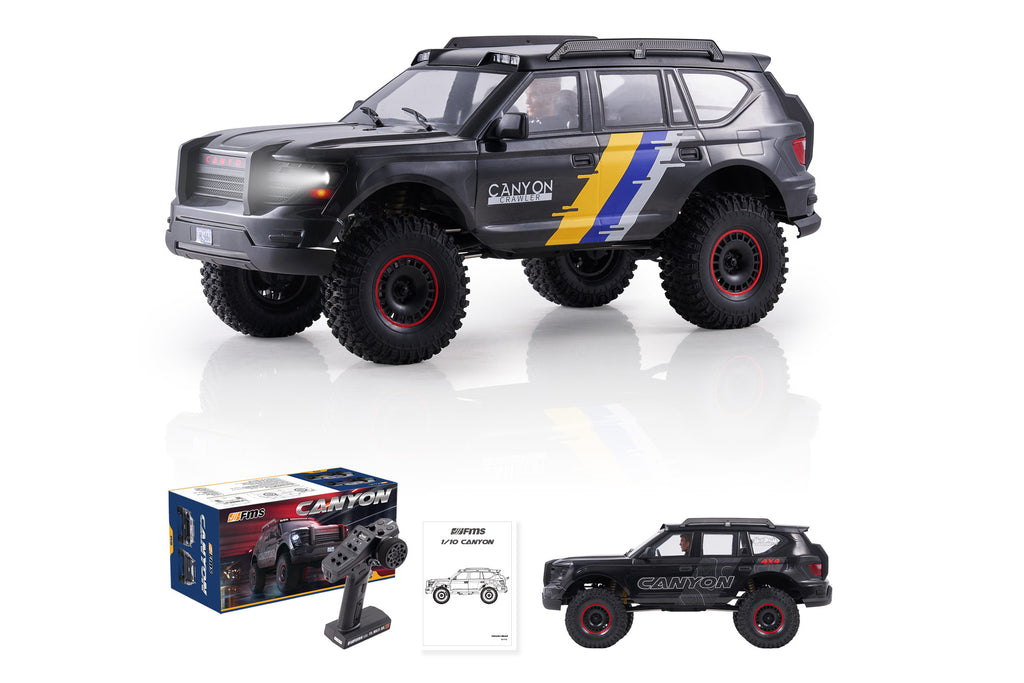

What's in the box:
1 x FMS 1:10 Canyon RS
1 x 2.4GHz MG11 Transmitter
1 x FS-R11P-BS Receiver (installed)
1 x 550 Brushed Motor 32T (installed)
1 x Product Manual
Needed to Complete:
4 x AA Batteries for Transmitter
Battery & Charger for Kit (Recommended 2S or 3S 5000mAh XT60 plug x1 - FMS 4400mAh SKU: C1542)
